## Why Is Healthcare Data So Complex?
Healthcare lead generation operates under a strict and unique constraint: every piece of patient data is protected under HIPAA (Health Insurance Portability and Accountability Act). True compliance extends far beyond basic encryption. It requires rigorous access controls, comprehensive audit trails, and legally binding Business Associate Agreements (BAAs)—requirements that standard marketing automation platforms typically ignore.
https://cms.webleymedia.com/wp-content/uploads/2026/03/unnamed-1.jpg
Traditional agencies often suggest workarounds, such as avoiding the collection of health information in forms altogether. In practice, this is rarely realistic. When a patient books a consultation for a specific procedure or inquires about treatment options, that information immediately qualifies as Protected Health Information (PHI).
### The Three Compliance Pillars
| Pillar | Requirement | Implementation |
| :— | :— | :— |
| **Privacy** | PHI must be encrypted in transit and at rest. | TLS 1.3 and AES-256 encryption. |
| **Security** | Access must be strictly logged and auditable. | Immutable audit logs stored in isolated environments. |
| **Breach Notification** | Any data breach must be reported within 60 days. | Real-time monitoring paired with instant alerting systems. |

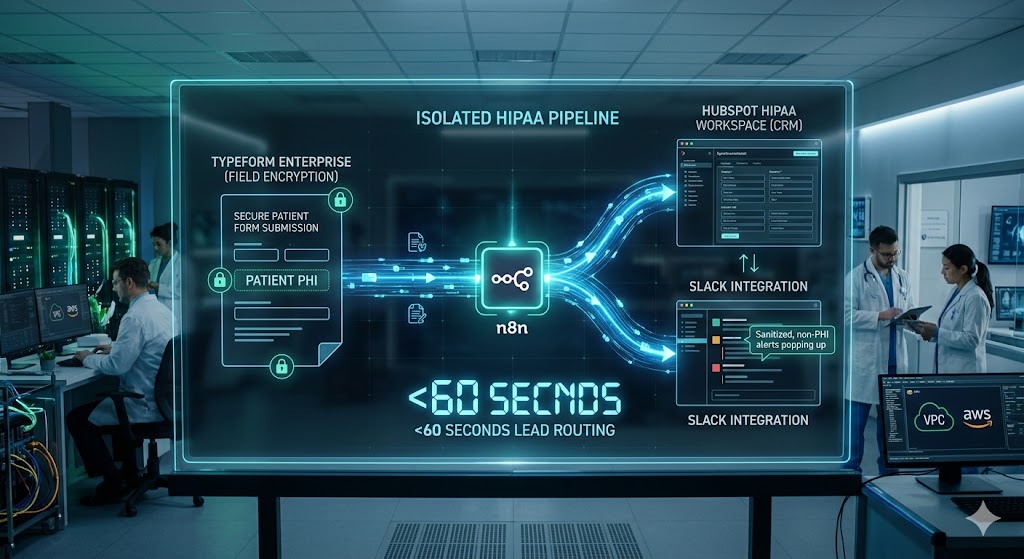

## The Isolated Pipeline Architecture
Our solution does not attempt to retrofit compliance onto existing, non-compliant tools. Instead, we architect a completely isolated data pipeline from the ground up to ensure maximum security.
### Component Overview
– **Self-Hosted n8n Instance:** Running within a Virtual Private Cloud (VPC) with no internet egress, except to explicitly whitelisted APIs.
– **Typeform Enterprise:** Configured with strict field-level encryption and a signed BAA.
– **HubSpot HIPAA Workspace:** A dedicated CRM instance featuring enhanced healthcare security controls.
– **Slack Integration:** Configured for sanitized internal notifications that never expose PHI to the broader team.
### Data Flow Architecture
1. **Patient Submits Form:** Typeform captures the user input utilizing field-level encryption.
2. **n8n Trigger:** A secure webhook receives the encrypted data payload.
3. **Data Processing:** The isolated workflow decrypts, validates, and sanitizes the information.
4. **HubSpot Sync:** The system creates a new contact using restricted, pre-approved field mapping.
5. **Internal Notification:** Slack alerts the sales team that a lead has been generated, without exposing any underlying PHI.
## Step-by-Step Implementation Guide
### Phase 1: Infrastructure Setup
The first step is provisioning your isolated n8n automation instance. We recommend utilizing an AWS VPC configured with private subnets and no NAT gateway for the automation layer.
**Required Resources:**
– EC2 t3.medium (minimum requirement) or ECS Fargate.
– RDS PostgreSQL database with encryption at rest enabled.
– S3 bucket designated for execution logs, utilizing Object Lock for immutability.
– VPC Flow Logs enabled for network auditing.
### Phase 2: Typeform Configuration
You must enable Enterprise-grade security features before processing any patient data:
1. Navigate to Settings, then Security.
2. Enable the “Encrypt responses at rest” feature.
3. Configure a custom data retention policy (a 30-day limit is recommended).
4. Execute and sign a formal BAA with Typeform.
5. Disable response PDF generation, as these files are not encrypted by default.
### Phase 3: HubSpot HIPAA Setup
You must contact HubSpot Sales directly to provision a HIPAA-enabled workspace. This environment is fundamentally different from their standard Business or Enterprise plans.
**Critical Note:** The standard HubSpot Marketing Hub is not HIPAA compliant without the dedicated healthcare workspace configuration.
## Security and Audit Controls
### Access Management
All access to the automation system must adhere to the principle of least privilege:
– **n8n Administrator:** Granted full workflow configuration access, but zero direct PHI visibility.
– **Sales Team:** Granted HubSpot CRM access only, with no visibility into raw form submission data.
– **Engineering Team:** Granted infrastructure and server access, with strict barriers preventing access to production PHI.
– **Audit Role:** Granted read-only access to system logs, with no operational or configuration control.
### Audit Log Requirements
Every single data touchpoint must generate an immutable log entry. Below is an example of a standard system log:
“`json
{
“timestamp”: “2026-02-20T14:30:00Z”,
“action”: “CONTACT_CREATED”,
“source”: “n8n_workflow_v2.1”,
“destination”: “hubspot_hipaa_prod”,
“patient_id_hash”: “sha256:9f86d08…”,
“operator”: “automated_system”,
“ip_address”: “10.0.1.15”,
“outcome”: “SUCCESS”
}
“`
## Optimizing for Speed Without Compromising Safety
Achieving a lead routing target of under 60 seconds is entirely possible through modern architecture:
– **No Human Bottlenecks:** Automated routing eliminates the need for manual lead qualification.
– **Asynchronous Processing:** Webhooks fire instantly, while data enrichment processes run in parallel.
– **Cached Enrichment:** General company data (e.g., via Clearbit) is cached to significantly reduce API latency.
### Performance Benchmarks
| Metric | Target Time | Actual Average |
| :— | :— | :— |
| Form Submission to CRM | Under 60s | 34s |
| Lead Routing Assignment | Under 5s | 2.1s |
| Data Enrichment Completion | Under 30s | 18s |
| Internal Slack Notification | Under 3s | 1.2s |
## Testing and Production Deployment
### Pre-Launch Validation
Before going live, ensure the following criteria are met:
– VPC isolation is fully verified (no external IP addresses are reachable).
– Encryption protocols are tested (data is confirmed encrypted both in transit and at rest).
– BAAs are signed and filed with all relevant vendors (Typeform, HubSpot, AWS).
– Audit logging is confirmed (all system events are successfully captured and stored).
– The breach notification alerting system has been tested.
– A comprehensive infrastructure rollback plan is documented.
### Load Testing
Simulate peak traffic periods to ensure compliance mechanisms hold up under system stress.
**Test Scenario Parameters:**
– Load: 1,000 concurrent form submissions.
– Duration: 5 continuous minutes.
– Expected Results: 100% submission success rate, zero PHI data exposure, and all audit logs successfully written to isolated storage.
## Conclusion
HIPAA compliance is not a simple checkbox; it is a fundamental architectural commitment. By building completely isolated workflows fortified with proper encryption, strict access controls, and immutable audit trails, you can achieve sub-60-second lead routing that accelerates healthcare marketing while maintaining absolute security.
The core takeaway is accepting that compliance requires rigorous engineering discipline. There are no shortcuts, but the end result is a highly efficient system that scales without exposing your organization to legal risk.
